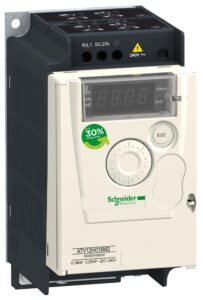

Altivar 12
Variable Speed Drives for commercial equipment from 0.18 to 4 kW Part of Altiva Altivar Machine ATV12 Variable Speed Drive is designed for commercial equipment and small machines with 3-phase 240V for asynchronous motors which require EMC standards up to C1 in residential areas. With dedicated functions and 3 macros applications (Start/Stop, PID, Speed) for simple environments. Embedded with PID, PID feedback supervision, PID Predictive speed, simply Jog functions, Catch on Fly and 8 preset speed.
Key Details
- Motor power range:18 kW to 4 kW
- Input voltage:typically 200–240 V AC (single-phase or three-phase depending on model)
- Output:3-phase supply to motor
- Frequency range:up to about 400 Hz
- Control modes:
- V/f control
Sensorless vector control
- Communication:Modbus (RS-485)
- Protection: overload, short-circuit, over/under-voltage protection
Typical Applications
- Small conveyors
- Fans / blowers
- Pumps
- Packaging machines
Small automation equipment
Example Models
Model | Power | Input |
ATV12H018M2 | 0.18 kW (0.25 HP) | 1-phase 230 V |
ATV12H037M2 | 0.37 kW (0.5 HP) | 1-phase 230 V |
ATV12H075M2 | 0.75 kW (1 HP) | 1-phase 230 V |
ATV12HU15M2 | 1.5 kW (2 HP) | 1-phase 230 V |
Important Points (from field use)
- Converts single-phase supply → 3-phase motor output.
- Built-in Modbus communicationfor PLC integration.
- Compact design for panel mounting (IP20).
