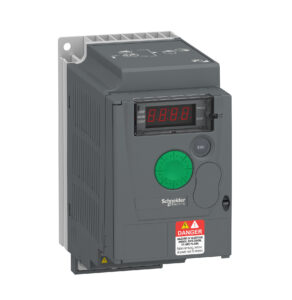

Altivar 310
The Easy Altivar 310 is a robust frequency inverter designed for controlling three-phase asynchronous motors in industrial and consumer machine applications. Optimized drives for machines from 0.37 to 30 kW Particularly suitable for applications involving industrial machines, the Easy Altivar 310 variable speed drive is a frequency inverter for three-phase 380…460 V asynchronous motors rated from 0.37 kW/0.5 HP to 30kW/40HP
Key Features
- Meet the requirements of directives regarding the protection of the environment (RoHS, WEEE)
- Designed with an increased adaptability to motors and tough loads
- Embedded U/F and sensorless vector control
- Easy to install
- Easy to commission
Typical Applications
- Textile machines
- Conveyor systems
- Packaging machines
- Woodworking machines
- Machine tools
- Pumps and fans
- Ceramic machines
- Material handling systems
Standards and Performance
| Input voltage | 380 – 460 V AC (±15%) |
| Input phase | 3-phase |
| Output phase | 3-phase motor output |
| Power range | 0.37 kW – 30 kW (Heavy duty) |
| Frequency range | 0.5 – 400 Hz |
| Supply frequency | 50 / 60 Hz ±5% |
| Overload capacity | 150% for 60 seconds |
| Cooling | Fan cooled |
| Noise level | ~50 dB |
