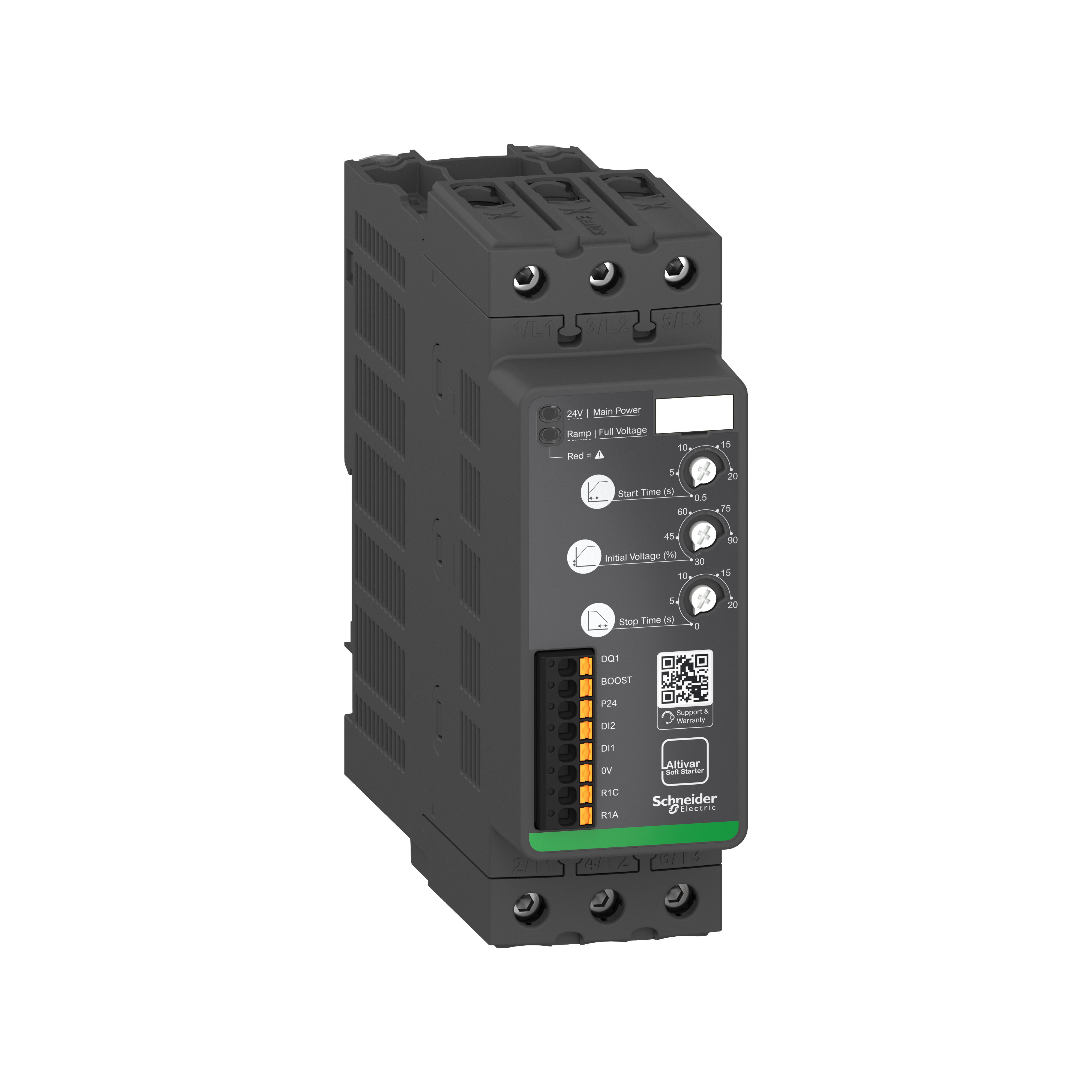

The Schneider Electric Altivar Soft Starter ATS130 is a compact, preventive-maintenance-free solution for starting and stopping asynchronous motors from 200 to 480V. Designed for pumps, fans, compressors, conveyors, and other simple machines, it provides mechanical and electrical flexibility for optimized motor management and efficient panel design.

Key Features

• Motor Compatibility: Supplies 11–22 kW motors, operational rated current 38A (normal duty)

• Compact Design: 55 mm width (matches TeSys Deca frame 3), depth 165 mm, height 179 mm, weight 1.26 kg

• Terminals: Everlink power terminals and spring control terminals for no annual retightening

• Mounting Flexibility: DIN rail or backplate mounting; side-by-side installation; compatible with 200 mm depth cabinets

• Optional Accessories: Fixing kit for TeSys Deca frame 3 motor circuit breaker; cooling fan to extend number of starts per hour

• Standards & Certifications: IEC/EN 60947-4-1; CE, EAC, UKCA, CCC, RCM

• Eco-Friendly: Ecolabel Green Premium, RoHS and REACH compliant

Benefits

• Optimized Motor Management: Ensures smooth start/stop and reduces mechanical and electrical stress

• Space-Saving Design: Compact size allows flexible and efficient control panel layout

• Maintenance-Free: No annual wire retightening required; preventive-maintenance-free operation

• Reliable Performance: Consistent and safe operation for pumps, fans, compressors, and conveyors

• Environmentally Responsible: Complies with environmental standards and regulations for sustainable operations
