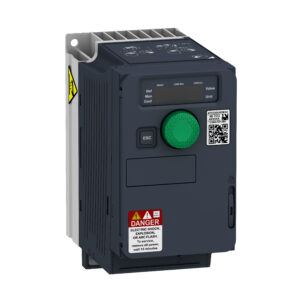

The Altivar Machine ATV320 is a versatile variable speed drive engineered for controlling both single-phase synchronous and asynchronous motors, serving the needs of original equipment manufacturers (OEMs) in simple to advanced applications.

Key Features

• Compact Form Factor: Allows for vertical stacking and easy integration within machine frames for space-efficient installations.
• Wide Motor Compatibility: Supports rated power up to 0.37 kW (0.5 hp) and voltages in the 200–240V AC range.
• Robust Design: Built with class 3C3 IEC 60721-3-3 coated printed circuit boards, ensuring reliability in harsh environments at ambient temperatures up to 60°C without extra cooling.
• Precision Motor Control: Delivers torque and speed accuracy at very low speeds, high dynamic performance with sensorless flux vector control, and expanded frequency capabilities for high-speed motors.
• Advanced Safety: Integrates five safety functions for machine safety, configurable through SoMove software, supporting secure operation without or with Preventa safety modules.

Application Functions

• Parallel Motor Connection: Supports parallel motors and specialized drives using voltage/frequency ratio methods.
• Energy Efficiency: Provides open-loop synchronous motor energy savings and static speed accuracy.
• Flexible Mounting: Mounts vertically (±10°) via four fixing holes, with a range of accessories such as braking resistors and EMC filters depending on drive rating.

Typical Applications

• Industrial Use: Optimal for packaging, material handling, textile, mechanical actuators, hoisting, and material working machines.
• OEM Integration: Fully compatible with Schneider Electric’s EcoStruxure Machine system and can be configured, controlled, and diagnosed in SoMachine and SoMove software.

Certifications and Compliance

• Meets major international standards: IEC/EN 61800-5-1, IEC/EN 61800-3 (EMC), CE, UL, CSA, NOM, EAC, RCM.
• Eco-friendly design complies with RoHS, WEEE directives for environmental protection.
