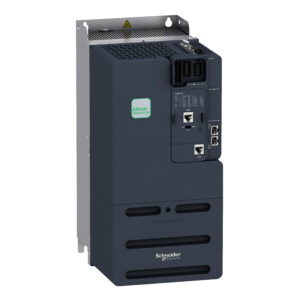

The Altivar Machine ATV340 is a high-performance variable speed drive engineered for demanding industrial environments, supporting 3-phase synchronous and asynchronous motors in both open and closed loop control.

Key Features

• Heavy-duty Operation: Rated for up to 11 kW (15 hp) at 380–480V AC, designed for continuous heavy-duty use in harsh conditions including shock, vibration, and non-conductive dust, with resistance to ambient temperatures up to 60°C.
• Advanced Communication: Integrates Modbus serial line and multi-protocol Ethernet (Ethernet IP and Modbus TCP) for versatile connectivity and system integration.
• Robust and Compact: Weighs 9.5 kg, dimensions of 180mm x 385mm x 249mm, supports vertical panel mounting (+/- 10°) with four mounting holes for streamlined installations.
• Safety and Compliance: Includes multiple safety functions (STO, SLS, SS1, SMS, GDL, SBC) configurable via SoMove software, and conforms to international standards IEC/EN 61800-5-1, IEC/EN 61800-3, IEC 60721-3, IEC 61508, IEC 13849-1; CE, UL, CSA, TÜV certified.
• Automation Integration: Fully compatible with Schneider Electric’s EcoStruxure Machine using DTM, enabling configuration, control, and diagnostics in SoMachine and SoMove software.

Performance and Application

• Optimized Motor Control: Supports a wide range of motors (IE2, IE3, IE4 synchronous, asynchronous, and reluctance) with high-torque capabilities and rapid command response time.
• Flexible Expansion: Accessories such as encoder modules, I/O expansions, communication modules, braking resistors, line/motor chokes, and additional EMC filters are available depending on drive rating.
• Typical Uses: Suited for packaging, material handling, material working, hoisting, consumer packaged goods, textiles, pumping, and general machine control.

Engineering Benefits

• Simplified Installation and Maintenance: Fast machine recovery, online tools, and extensive diagnostic capabilities help reduce machine downtime and speed up commissioning.
• Eco-friendly Design: Meets RoHS and other environmental protection directives.
