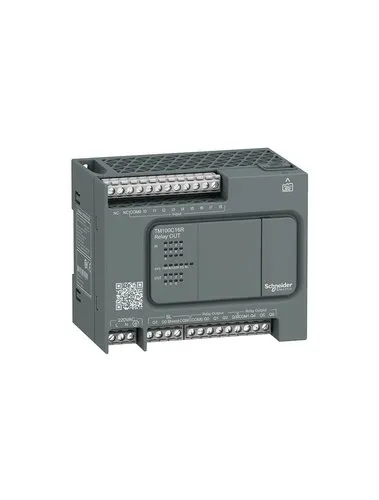

The Easy Modicon M100 is a compact and cost-effective logic controller designed for automating simple machines with up to 40 inputs and outputs. It offers a versatile solution for small finishing, production, assembly, and packaging applications.

Key Features

• Input/Output Configuration: Equipped with 4 fast inputs, 2 high-speed inputs, 3 regular inputs, and 7 normally open relay outputs, supporting control flexibility.
• Voltage and Current: Operates on 24V DC input and output voltages, and 220V AC output voltage, with an output current of 2A.
• Memory and Storage: Features 512KB internal flash memory and supports up to 32GB micro SD card for easy program updates and data storage.
• Communication Interfaces: Integrated USB port (mini B USB 2.0), two non-isolated serial links—Serial Link 1 with RS485 and Serial Link 2 with RS232/RS485 interfaces—for seamless connectivity.
• Durability and Mounting: Rated IP20 for protection and designed for easy DIN rail mounting, with compact dimensions of 110mm (W) x 70mm (D) x 90mm (H) and weighing 0.295 kg.
• Standards and Certification: Compliant with CE marking and adheres to EN/IEC 61010-2-201 and EN/IEC 61131-2 standards for safety and industrial control compatibility.

Benefits

• Easy Maintenance: Micro SD card allows straightforward updating and maintenance of programs.
• Affordable Entry-Level: Ideal for emerging markets, delivering a cost-effective solution without compromising on essential features.
• Simple Sequential Control: Perfectly suited for sequential control needs in simple machine automation tasks.
