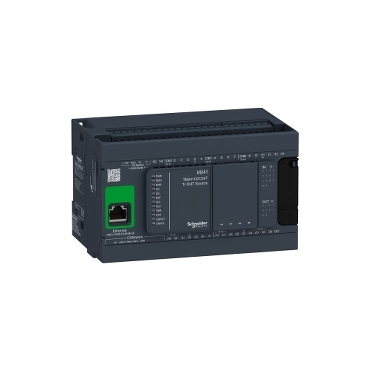

The Modicon M241 is a high-performance logic controller designed for demanding applications that require precise speed and position control. It provides a versatile and compact solution for automation in complex machinery and industrial processes.

Key Features

• Input/Output Configuration: Offers 24 discrete inputs, 8 fast inputs, 16 transistor outputs, and 4 fast outputs with Ethernet PNP transistor output capability, supporting both sink and source input logic with positive output logic.
• Voltage and Current Ratings: Operates on 24V DC supply/output voltage, with output currents of 0.5A for transistor outputs and 0.1A for fast outputs, ensuring reliable and robust control.
• Memory and Storage: Equipped with 8MB program memory, 64MB system RAM, 128MB built-in flash memory for user program backup, and supports up to 16GB SD card for extended memory capacity.
• Communication Connectivity: Integrates multiple communication ports including mini B USB 2.0, non-isolated serial link 1 (RJ45 with RS232/RS485), non-isolated serial link 2 (removable screw terminal with RS485), and Ethernet with RJ45 for flexible networking options.
• Intuitive Programming Interface: Features an organized screen design that simplifies application building, complemented by EcoStruxure Machine Expert software for easy machine programming with ready-to-use applications and function blocks.
• Designed for High Performance: Specifically built for compact machines requiring enhanced speed and position control functionalities.
• Durability and Mounting: IP20 rated with dimensions of 190mm (W) x 95mm (D) x 90mm (H) and weighing 0.62 kg; supports DIN rail mounting for efficient installation.
• Industry Certifications: Complies with CE, IACS E10, CSA, RCM, CULus certifications; standards including ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-2 (2007), marine specifications (LR, ABS, DNV, GL), UL 1604, and UL 508.

Benefits

• Benchmark Performance: Delivers top-tier automation performance while enhancing profitability through efficient machine operation.
• Flexible and Scalable: Supports a wide range of automation needs with extensive communication options and large memory capacity.
• User-Friendly: Intuitive programming reduces development time and limits errors, accelerating deployment cycles.
