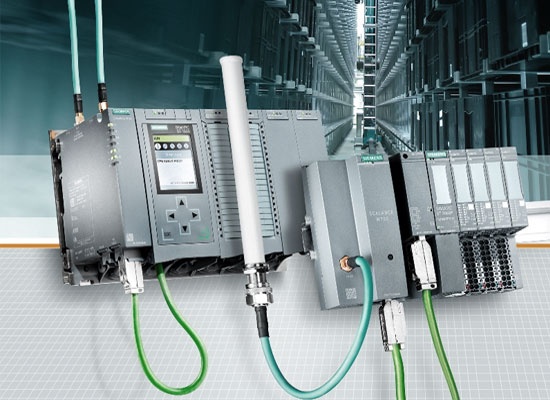

SIEMENS PLC & SCADA based Material Handling System

We have automated the tile manufacturing plant with recipe control from SCADA. We have integrated SIEMENS and SCHNIDER SCADA with Siemens s7 200 and SCHNIDER M340 PLC and VFDs. The Auto/Manual operation of plant is equipped with bypass system using contactors so that manual operation can be done even if there is no PLC and SCADA. The colour combination of tiles can be set from SCADA and the materials amount can be given from SCADA.

Project Goals and Targeted Benefits:

Up to date, reliable SCADA system
Significantly better documentation of the SCADA system
Implementation using SCADA standards
Optimized water treatment plant automation strategies
Much greater access to historical SCADA information

Project Drivers

Existing SCADA servers, software, and PLC’s were at the end of their asset life
No longer able to get spare parts
Unreliable wide area communication
Increased demands by regulators for better operation

Implementation Strategy
SCADA Construction Contract – $9 million contract – Includes 8 municipalities – Replacement of controllers and SCADA servers for 5 regional centrals – 2 large, 1 small water plant – 2 wastewater plants – 60 remote water and wastewater stations across 1,500 square miles (30x50 miles)
SCADA WAN Contract – One tender – Third party WAN Provider – Over 100 WAN links – Five Contracts by SCADA Network – Performance Based contract

Lake Huron Primary Water Supply SCADA System

Water Plant – Redundant SCADA Servers – 13 Operator View Clients – FactoryTalk Data Collection and Reporting Server – SDMS Server – Redundant ControlLogix – 20 Remote FLEX I/O systems using ControlNet Coax and Fiber – DeviceNet to power monitors – Wireless SCADA Client network everywhere
Remote Sites – CompactLogix at 10 valve chambers, reservoirs, and water booster stations

Significant Improvements- Operations

Vastly improved chemical dosing control
Improved filtration and backwash control features
Better plant flow control
Real time CT calculations for compliance reporting
Much better alarm management
Remote paging of alarms
Remote access to SCADA system from anywhere, via Internet
